    Bridge Rectifier Module

    Product Details

    Bridge Rectifier Module

    Features
    ■ Base & chip insulation AC voltage 2500V
    ■ International standard packing
    ■ Excellent temperature feature
    ■ Easy to install
    ■ Popular size
    ■ Low VFM

    Applications
    ■ Instrument’s DC powers upply
    ■ PWM frequency transformet
    ■ Input rectificate power supply
    ■ DC motor field power supply
    ■ Switch power supply input rectificate

    Ordering Information Table

    Part number type & circuit

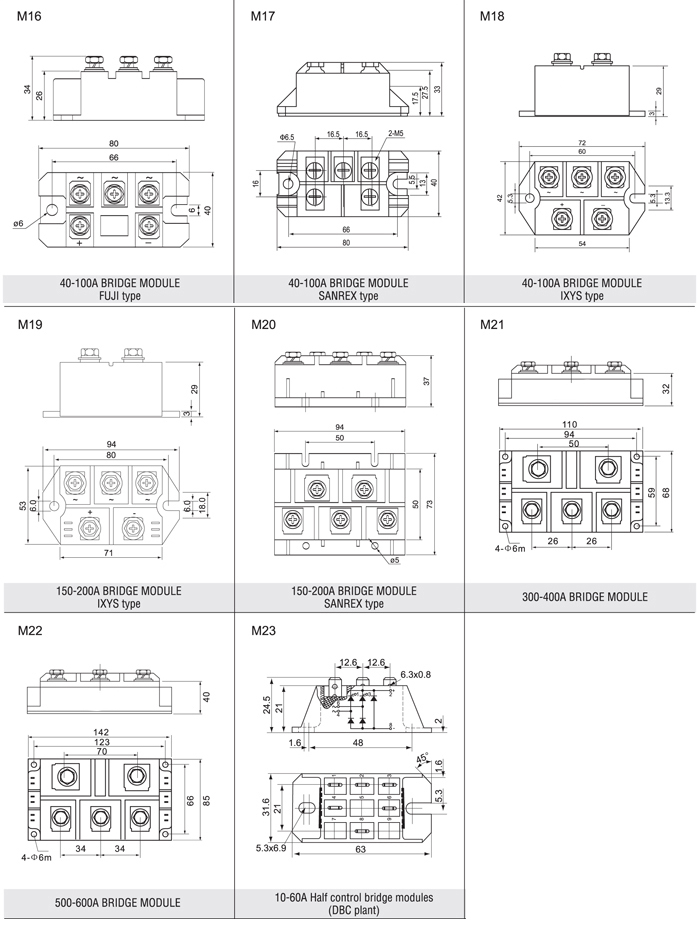

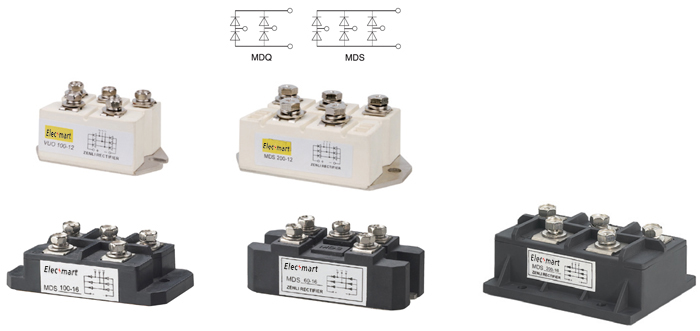

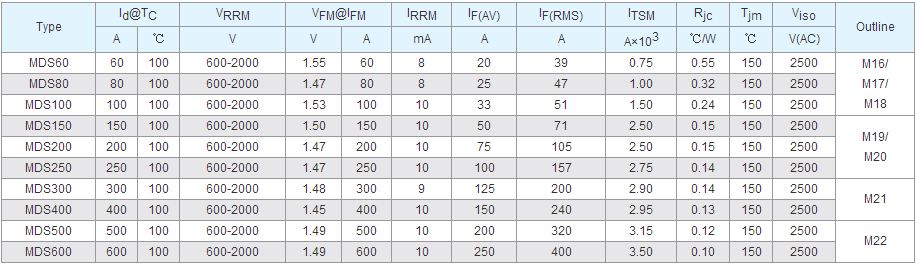

    THREE-PHASE BRIDGE RECTIFIER MODULES (MDS)

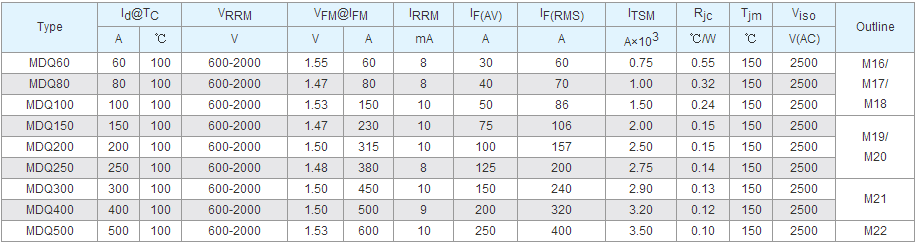

    SINGLE-PHASE BRIDGE RECTIFIER MODULES (MDQ)


    SINGLE PHASE.3 PHASE FULL CONTROL/HALF CONTROL THYRISTOR BRIDGE MODULE

    Part number type & circuit

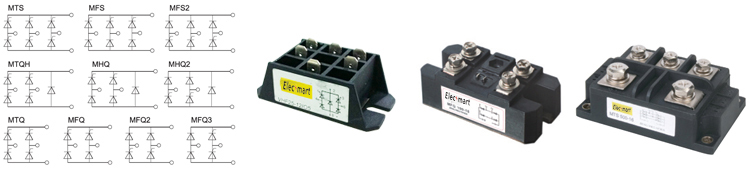

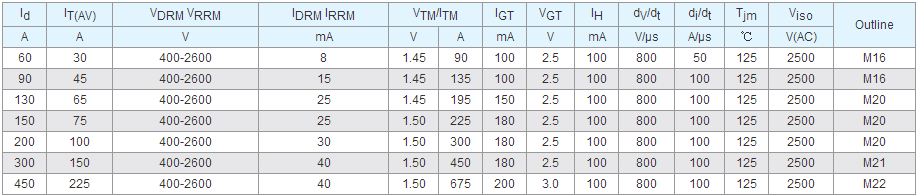

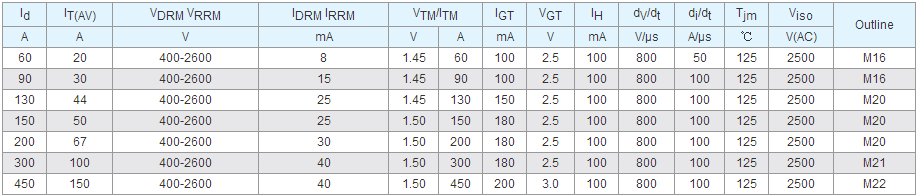

    Three-phase Full Control/Half Control Thyristor Bridge Modules(MTS、MFS)


    Single-phase Full Control/Half Control Thyristor Bridge Modules (MTQ、MFQ、MTQH、MHQ)

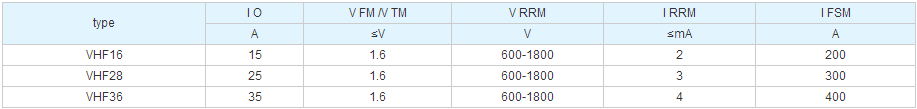

    Single phase half controlled bridge rectifier(VHF)

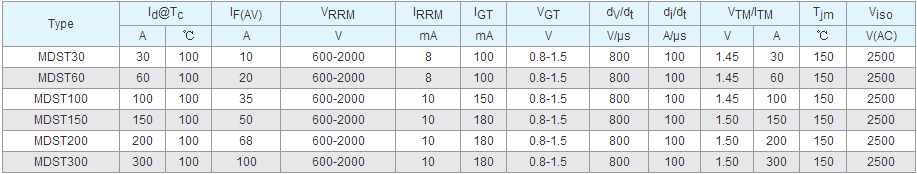

    THREE-PHASE BRIDGE RECTIFIER OUTPUT CONTROLLABLE MODULE

    Typical Applications
    ■ For AC/DC motor controls
    ■ Rectifying power supplies
    ■ Welder,frequency converters
    ■ UPS power supply
    ■ Battery charge and discharge

    Features
    [email protected]℃:30A-300A
    ■ VRRM:600-2000V
    ■ Welding technique under the production of vacuum and hydrogen gas
    ■ Electrical insulation class:chips and baseboard 2500VAC voltage

    Connecting Program

    Apply three-Phase AC input and DC output.Terminals R2 and R share single-phase current and conduce the energy in double sides.Terminal G use 5-24V DC which may conduct curent from transformer terminal.

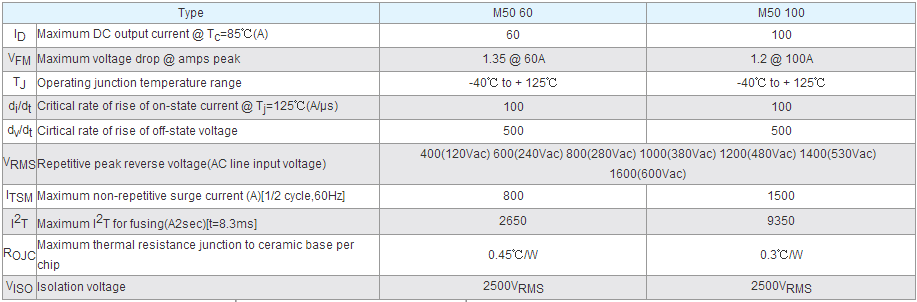

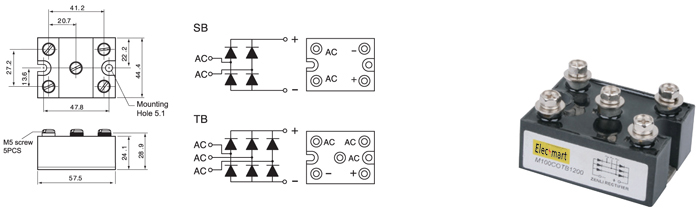

    BRIDGE RECTIFIER MODULE(CRYDOM Type)

    Applications
    Single-phase and three-phase diode circuits incorporate highly efficient thermal management to provide high surge capability,extended life,and reliable performance.available in five circuits,all models come in an industry standard package,provide 2500 VRMS from all terminals to the baseplate.

    Ordering information Table

    Part number type & circuit


    Electrical Specifications
