Rectifier Bridge Module

Generator rectifier bridge module

Features
■ Non-insulation
■ Baseplate communal electrode
■ International standard

packing
■ Excellent temperature feature
■ High IF_SM(IT_SM)
■ Low V_FM(V_TM)

Explanation
■ I_GT,V_GT,I_H are all T_A=25℃ test data,others are all T_A=T_jm test data.
■ I²t=I²_TSM×t_W/2:t_W=Half sine wave current,when at 50Hz,I²t=0.005I²_TSM(A²S)
■ When at 60Hz,I_TSM(8.3ms)=I_TSM(10ms)×1.066,T_j=T_jmI²t(8.3ms)=I²t(10ms)×0.943,T_j=T_jm

_{Ordering Information Table}

_Applications

_{■ Welding Power
■ DC Power
■ Frequency transformer}

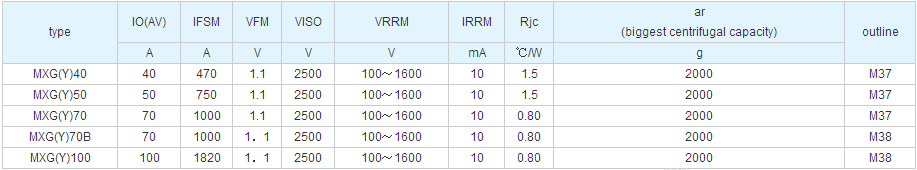

_{Part number type & circuit}

Genarator bridge rectifier series发电机整流桥系列
