    Capsule fast thyristor

    Product Details

    Fast thyristor (capsule bersion)

    Features

    ■All diffuse techinics
    ■Ceramic disc type seal
    ■Middle trigger
    ■Good dynamic feature
    ■Low switch loss
    ■Bifacial cooled
    ■Fast switch feature

    Typical applications

    ■Inverter
    ■Chopper
    ■Induction warm-up
    ■Current converter

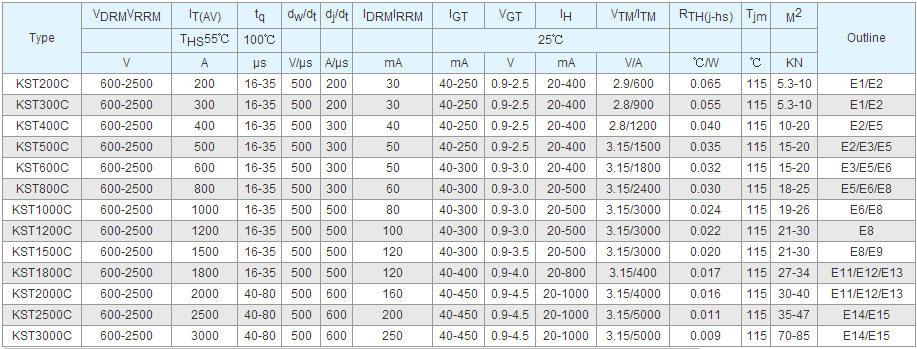

    Explanation

    ■IGT,VGT,IH are TA=25℃ test data,others are all TA=Tjm test data.
    ■I2t=I2TSM×tW/2:tW=Half sine wave current when at 50HZ I2t=0.005I2FSM(A2S)
    ■When at 60HZ ITSM(8.3ms)=ITSM(10ms)×1.066
    ■I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm
