Capsule triac thyristor

Triac thyristor (capsule bersion)

Features

■All diffuse techinics
■Ceramic disc type seal
■Middle trigger
■Bifacial cooled
■Same as two thyristor anti-abreast
■Use proper trigger current,anti & foward all could ducting

Explanation

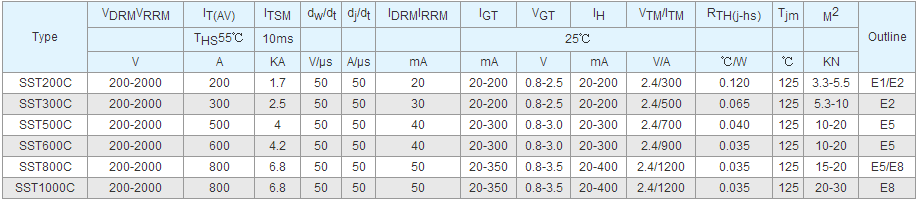

■I_GT,V_GT,I_H are T_A=25℃ test data,others are all T_A=T_jm test data.
■I²t=I²_TSM×t_W/2:t_W=Half sine wave current when at 50HZ
I²t=0.005I²_FSM(A²S)
■When at 60HZ I_TSM(8.3ms)=I_TSM(10ms)×1.066,T_j=T_jm
■I²t(8.3ms)=I²t(10ms)×0.943,T_j=T_jm
■Gate trigger made(base point nt T1)

Typical applications

■AC switch
■Fast motor control

I_GT,V_GTjust for I₊ ,I_-,Ⅲ-3mode gate trigger,I_H data for two side all could use.
