    Bridge Rectifier

    Product Details

    Bridge Rectifier

    Features
    ■ Id@Tc55℃:5A~300A
    ■ Voltage:100V~1600V
    ■ Small General outline
    ■ Vacuum Weld Techinics
    ■ GPP CELL Diode Chip
    ■ Good Power/volume
    ■ High Temp Conduct Packing

    Typical Applications
    ■ Rectificate Power
    ■ Automate Control
    ■ Numerical Control Machinery

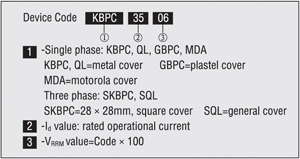

    Part number type & circuit

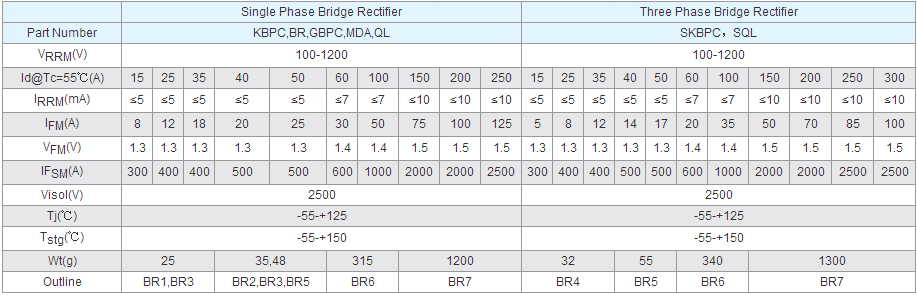

    Ordering Information Table

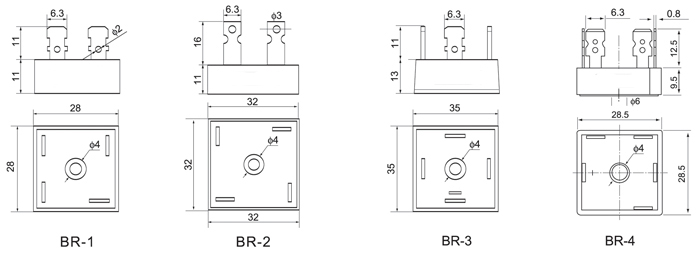

    Bridge Rectifier Outline

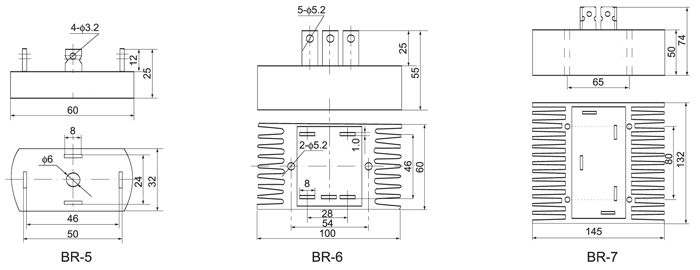

    Bridge Rectifier Outline


    Rating and Characteristic Curves

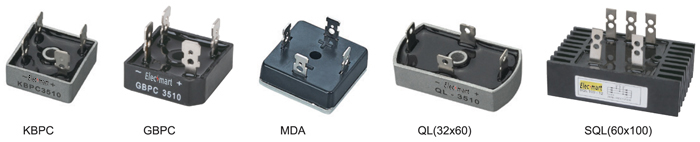

    KBPC/GBPC/BR/MDA/QL
