Press-fit Diode Series

Press-fit Diode Series

Features
■ Diffused junction
■ Low leakage
■ Low cost
■ High surge current capability

Mechanical Data
■ Case & terminal:red copper
■ Terminal:easy for soldering
■ Polarity:standard cathode to case red color
　　　　　　Reverse Anode to case black color

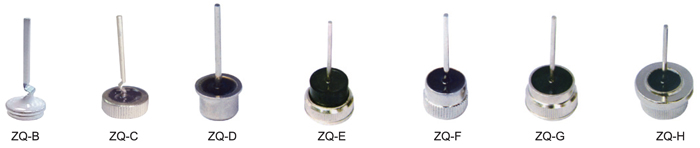

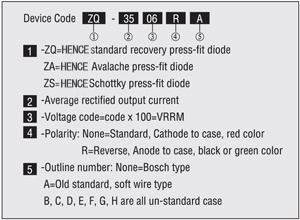

Ordering information Table

^*Different size all could custom-design.

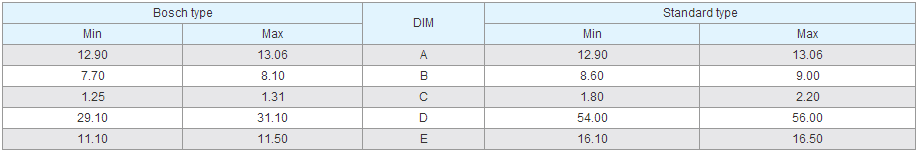

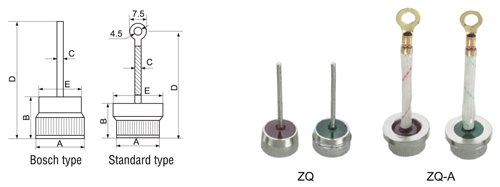

Outline Dimension List

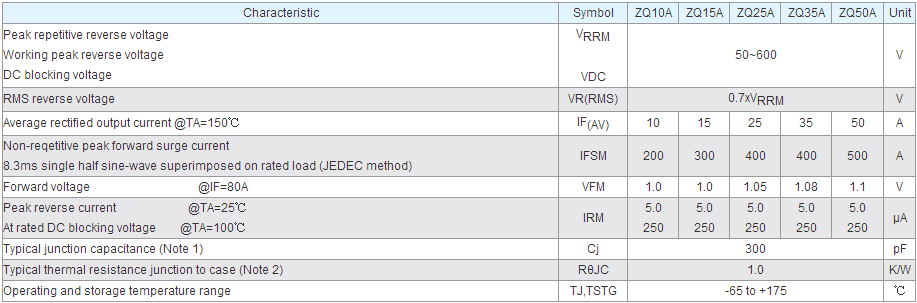

Maximum Ratings and Electrical Characteristics @T^A=25℃ unless otherwise specified
Single phase,half wave,60Hz,resistive or inductive load. For capacitive load,derate current by 20%.

If need V_RRM ＞600V or un-standard type,pls contact ZENLI.

^*also could make Avalache diode,Schottky diode.

Other off-standard size
