    Type Designation

    Product Details

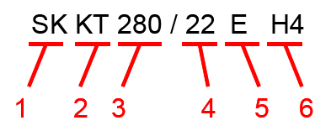

    Type designation


    1: SEMIKRON compenent

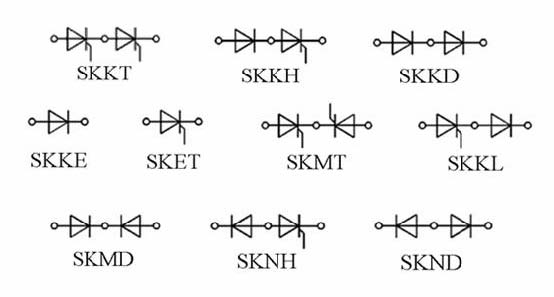

    2: Topology of internal connection, pls refer to Fig.1-2

    3: Rated current (ITAV [A])

    4: Voltage class (VRRM[V])

    5: dv/dt class5

    D: 500 V/μs

    E: 1000 V/μs

    G: 2000 V/μs

    6: Option, where applicable, e.g. H4= Visol 4.8 kV/1s
