      Your position:Home > Products > Diode / Thyristor Module >

    Thyristor-diode Module

    Product Details

    Thyristor-diode Module

    Features

    ■ Base & chip insulation AC voltage 2500V
    ■ International standard packing
    ■ Excellent temperature feature
    ■ ≥300A could chose water-cool
    ■ Easy to install

    Applications

    ■ AC DC motor control
    ■ Motor soft start
    ■ Industry heat-up control
    ■ Rectificate power supply
    ■ Welder
    ■ Frequency transformer
    ■ UPS power supply
    ■ Battery change & dischange

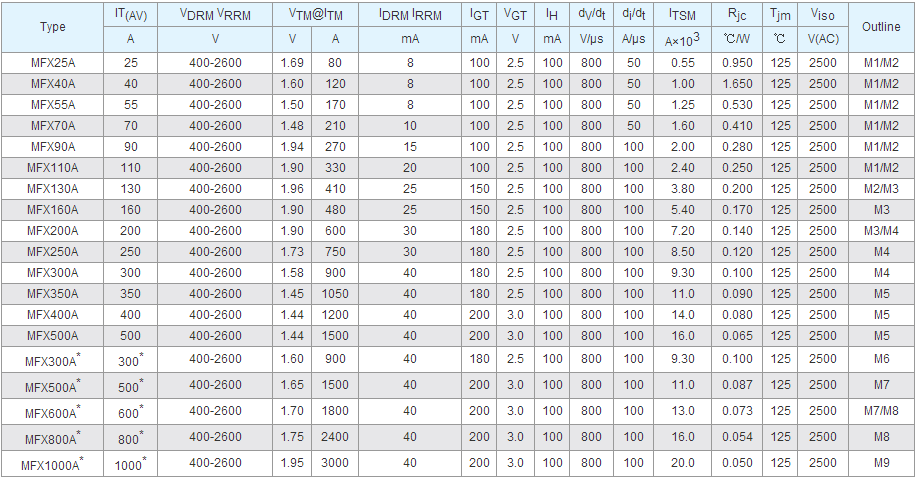

    Ordering Information Table

    Explanation

    ■ IGT,VGT,IH are all TA=25℃ test data,others are all TA=Tjm test data.
    ■ I2t=I2TSM×tW/2:tW=Half sine wave current,when at 50Hz,I2t=0.005I2TSM(A2S)
    ■ When at 60Hz,ITSM(8.3ms)=ITSM(10ms)×1.066,Tj=Tjm I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm

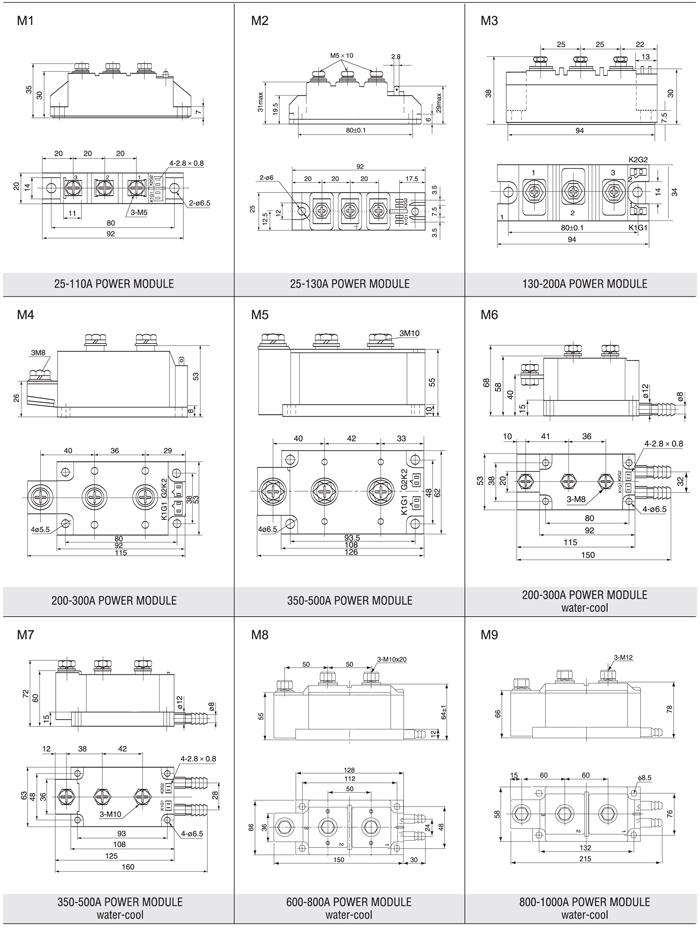

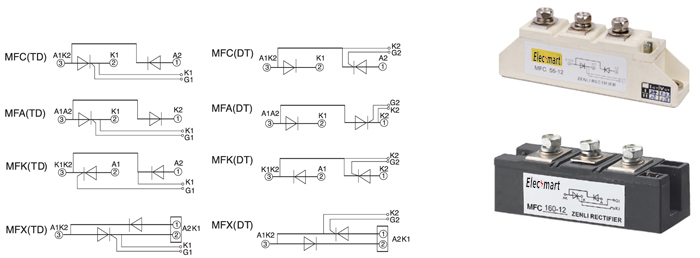

    Part number type & circuit


    THYRISTOR-DIODE MODULE (MFC,MFK,MFA,MFX)


    *Means water-cool
