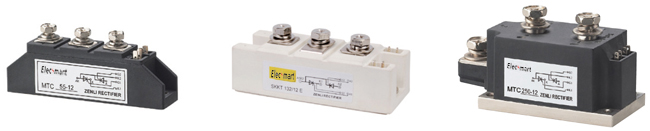

Standard Thyristor Module

Standard Thyristor Module

Features

■ Base & chip insulation AC voltage 2500V
■ International standard packing
■ Excellent temperature feature
■ ≥300A could chose water-cool
■ Easy to install

Applications

■ AC DC motor control
■ Motor soft start
■ Industry heat-up control
■ Rectificate power supply
■ Welder
■ Frequency transformer
■ UPS power supply
■ Battery change & dischange

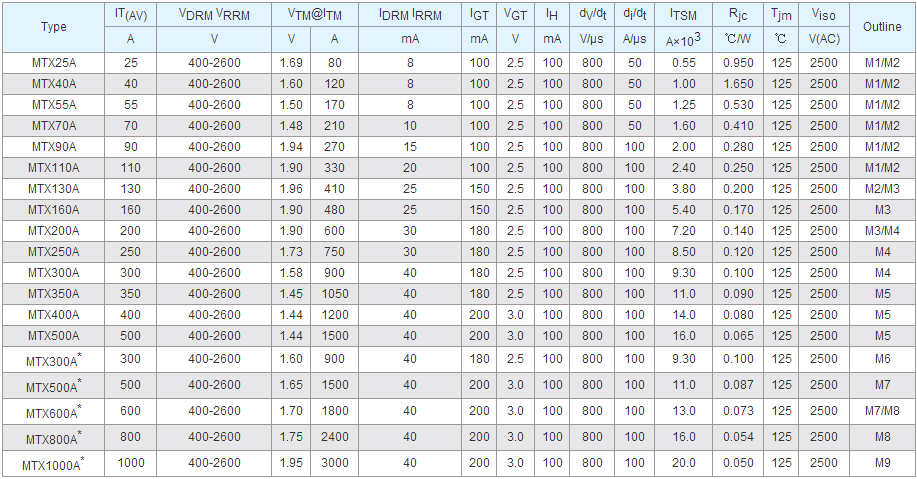

Ordering Information Table

Explanation

■ I_GT,V_GT,I_H are all T_A=25℃ test data,others are all T_A=T_jm test data.
■ I²t=I²_TSM×t_W/2:t_W=Half sine wave current,when at 50Hz,I²t=0.005I²_TSM(A²S)
■ When at 60Hz,I_TSM(8.3ms)=I_TSM(10ms)×1.066,T_j=T_jm I²t(8.3ms)=I²t(10ms)×0.943,T_j=T_jm

_{STANDARD THYRISTOR MODULE (MTC,MTK,MTA,MTX,MT)}

_{^*Means water-cool}

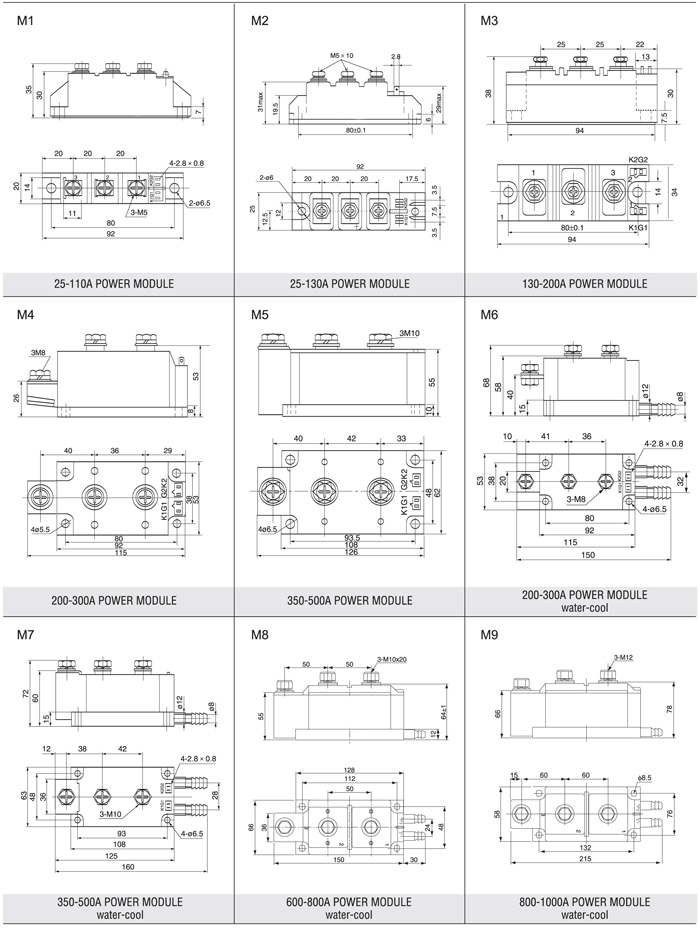

_{Part number type & circuit}
