    Capsule Russia Semiconductor

    Product Details

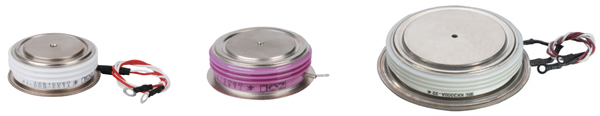

    Russia Type Semiconductor (capsule Version)

    Features

    ■ All diffuse techinics
    ■ Ceramic disc type seal
    ■ Middle trigger
    ■ Bifacial cooled
    ■ High current

    Typical Applications

    ■ Big power transformer
    ■ AC & DC motor control
    ■ AC & DC switch
    ■ Phase control rectification
    ■ Inverter  ■ Welder

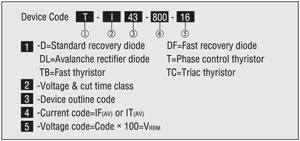

    Ordering information Table

    Explanation

    ■ IGT,VGT,IH are all TA=25℃ test data,others are all TA=Tjm test data.
    ■ I2t=I2TSM×tW/2:tW=Half sine wave current,when at 50Hz,I2t=0.005I2TSM(A2S)
    ■ When at 60Hz,ITSM(8.3ms)=ITSM(10ms)×1.066,Tj=Tjm I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm

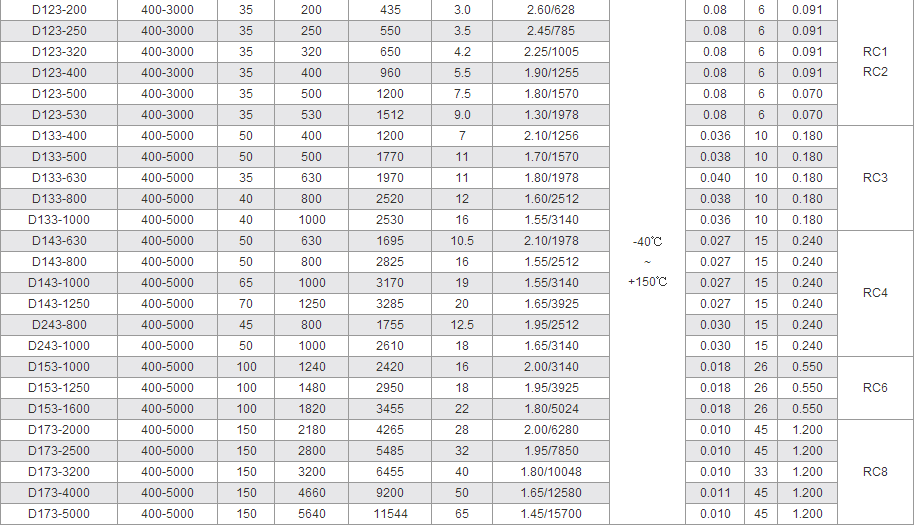

    Russia Type Standard Recovery Diode(Capsule version)

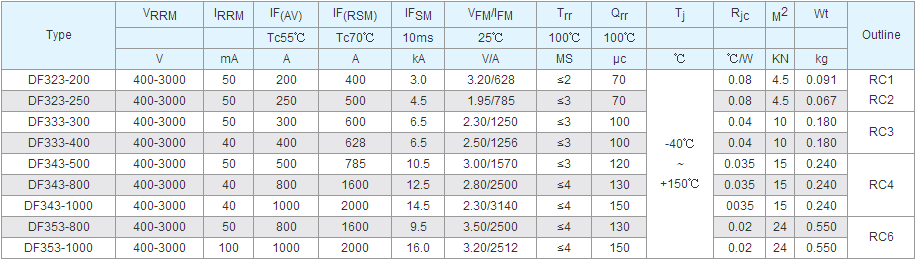

    Russia Type Fast Recovery Diode (Capsule Version)

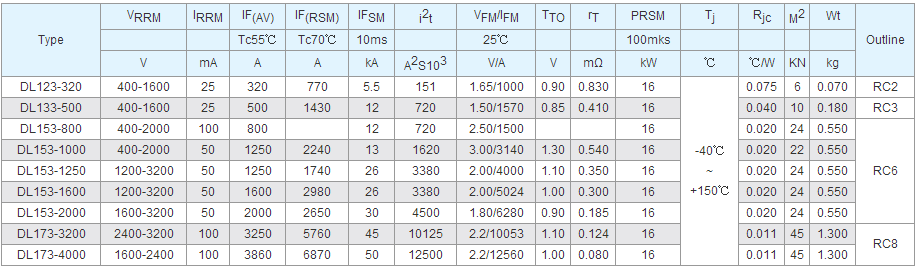

    Russia Type Avalanche Rectifier Diode(Capsule Version)

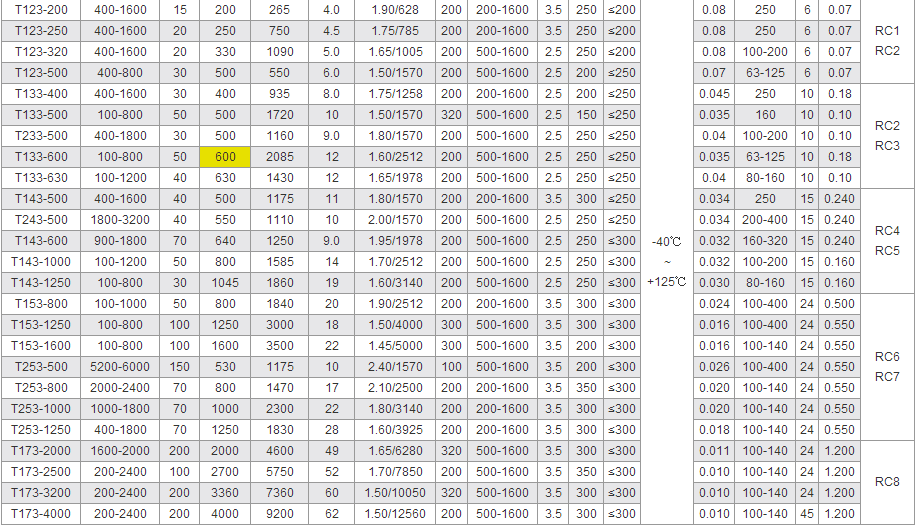

    Russia Type Phase Control Thyristor (Capsule version)

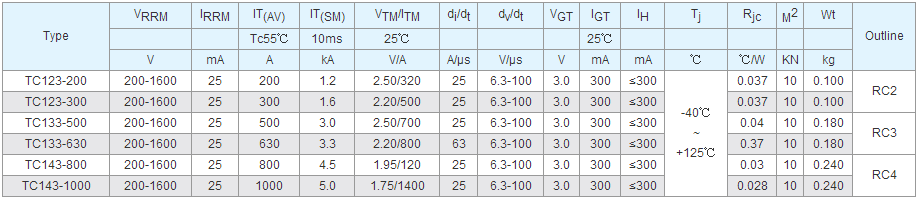

    Russia Type Triac Thyristor(Capsule Version)

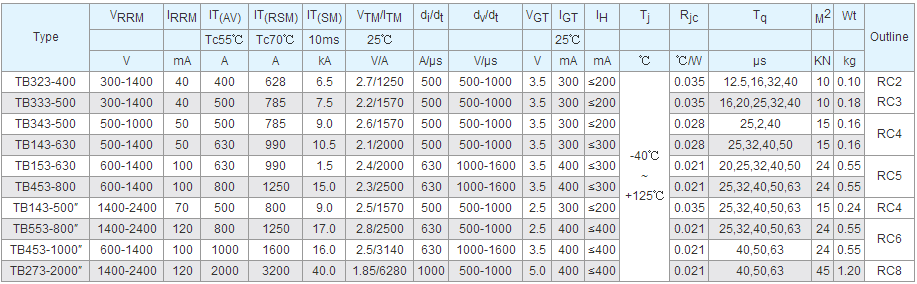

    Russia Type Fast Thyristor(Capsule Version)


    Russia Type Capsule Version Outline
