    Capsule fast recovery diode

    Product Details

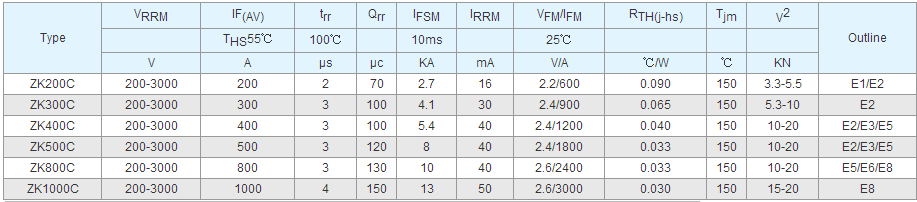

    Fast recovery diode(capsule version)

    Features
    ■All diffuse te chinics
    ■Short recovery time
    ■Very small anti recovery charge
    ■Fast soft recovery features
    ■Ceramic disc type seal
    ■Bifacial cooled

    Typical application
    ■Motor control
    ■Induction warm-up
    ■UPS power
    ■Charger
    ■Welder

    Explanation
    ■I2t=I2FSM×tW/2:tW=Half sine wave current when at 50HZ
    I2t=0.005I2FSM(A2S)FSM
    ■When at 60HZ IFSM(8.3ms)=IFSM(10ms)×1.066,Tj=Tjm
    ■I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm
